Muro de Contención en Voladizo: Ingeniería y Diseño Estructural Profesional

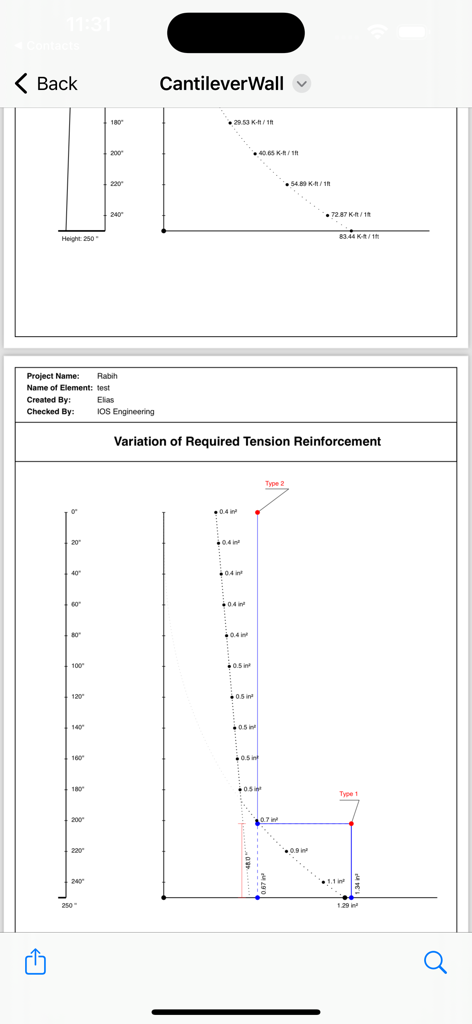

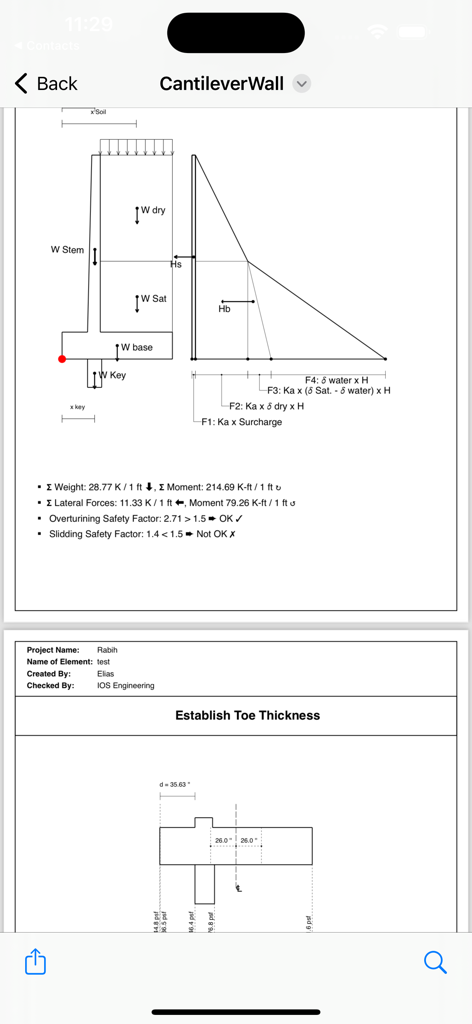

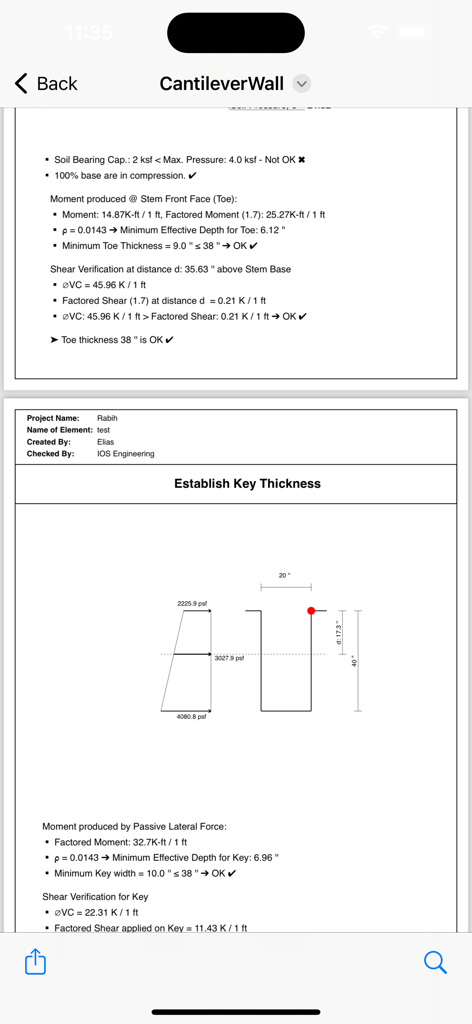

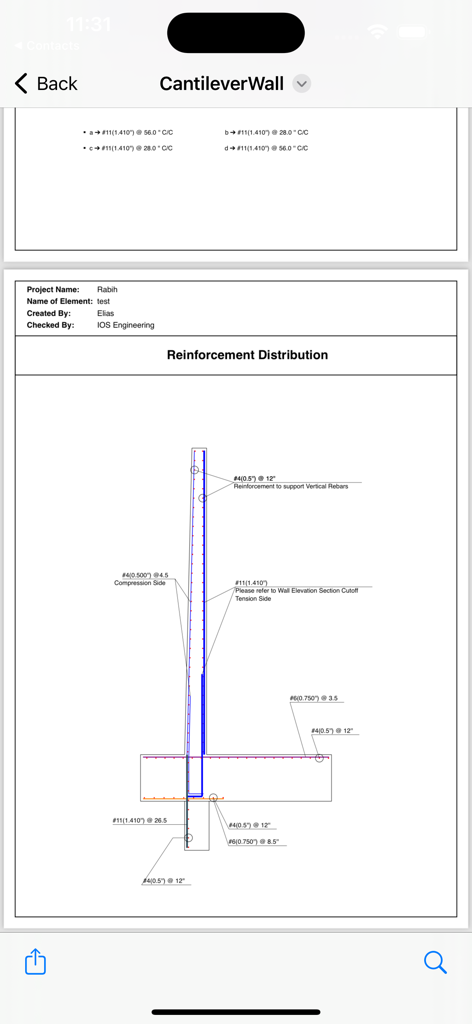

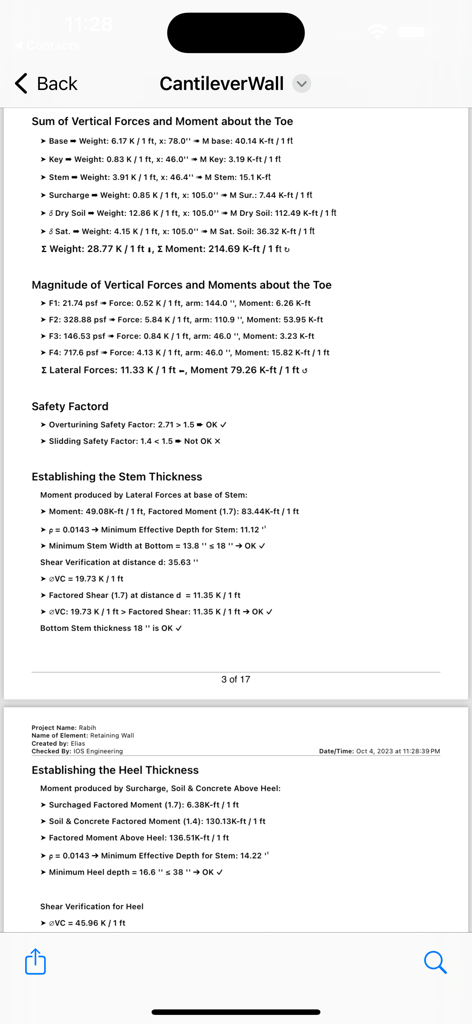

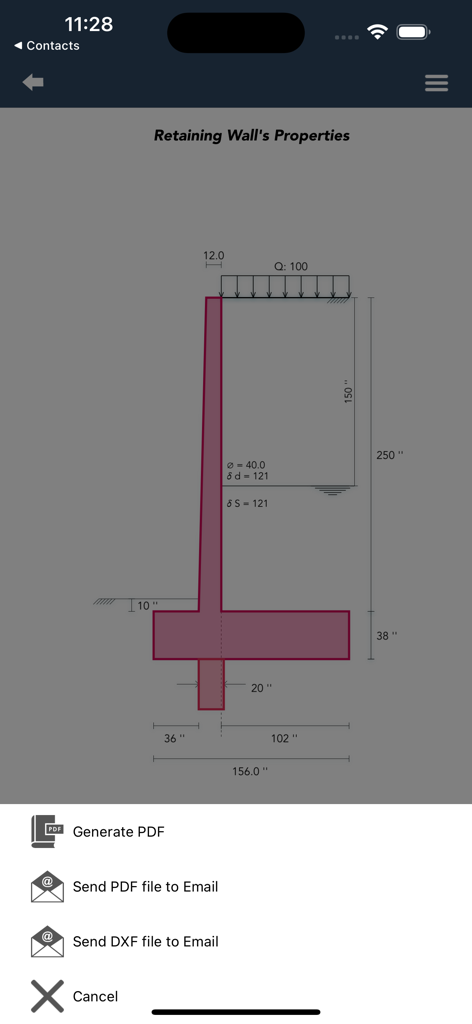

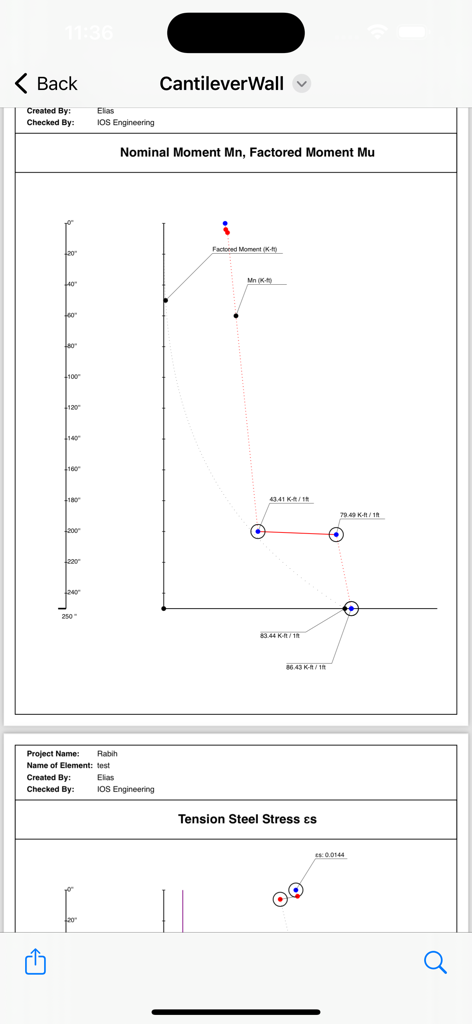

This application includes two major calculation steps and provide you a comprehensive calculation report in PDF and in DXF(Autocad): - Stability evaluation which includes the overturning, bearing, and sliding failure modes. - Designing the different components of Retaining Wall: stem, heel, toe and key, for bending and shear, under the combined factored loads. Results: - Check stability Verticals and Laterals forces. - Graphic display of forces and pressures acting upon the wall. - Establish Stem, Heel, Toe and Key thickness by Verifying shear & moment. - Bearing Capacity Verification. - Graphic plot moment and shear diagrams to optimize reinforcing bars. - Graphic plot for required flexural reinforcement to optimize reinforcing bars. - Complete stability analysis for overturning, sliding, and bearing. - Graphic plot of Nominal Moment. - Graphic plot Stress diagrams. - Graphic plot Neutral axes diagrams. - Graphic plot for wall elevation with Cutoff Location in Tension side. - Concrete design of stem, toe, heel, and key. - Graphic plot for reinforcement distribution - Ability to create a DXF file containing the reinforcement in details - Create a comprehensive calculation report containing all calculation details
