Lineman's Reference - XFMR LAB: Master Transformer Wiring with the Industry's Leading Simulator

Built by a journeyman for those who climb. Practice complex single and three-phase banks, troubleshoot with virtual meters, and ace your certifications in a high-stakes, zero-risk environment.

Publisher

Digital Apprentice LLC

Category

Education

Downloads

26K+

User Rating

4.1/5

Total Ratings

100

Locales

1

Master the Bank

Discover the interface used by 26K+ users.

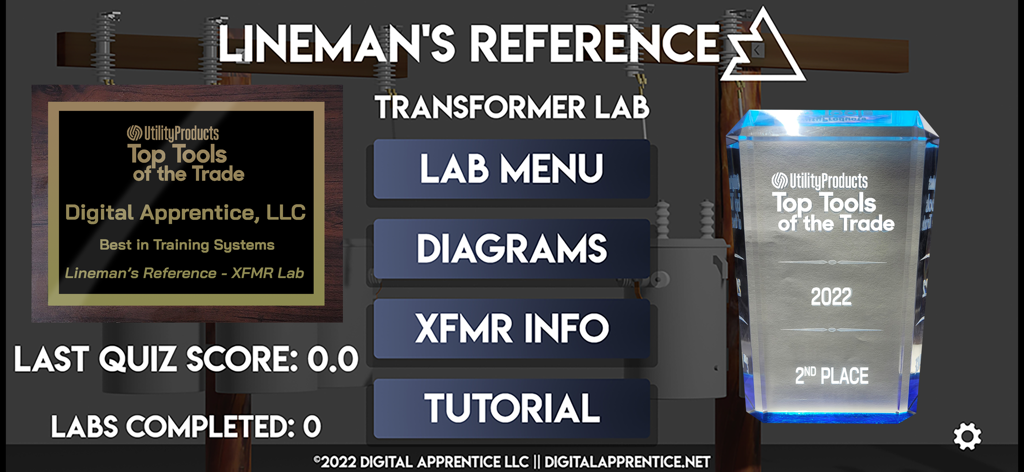

Main menu screen of the Lineman's Reference XFMR LAB app showing navigation buttons and industry awards.

Main menu screen of the Lineman's Reference XFMR LAB app showing navigation buttons and industry awards.

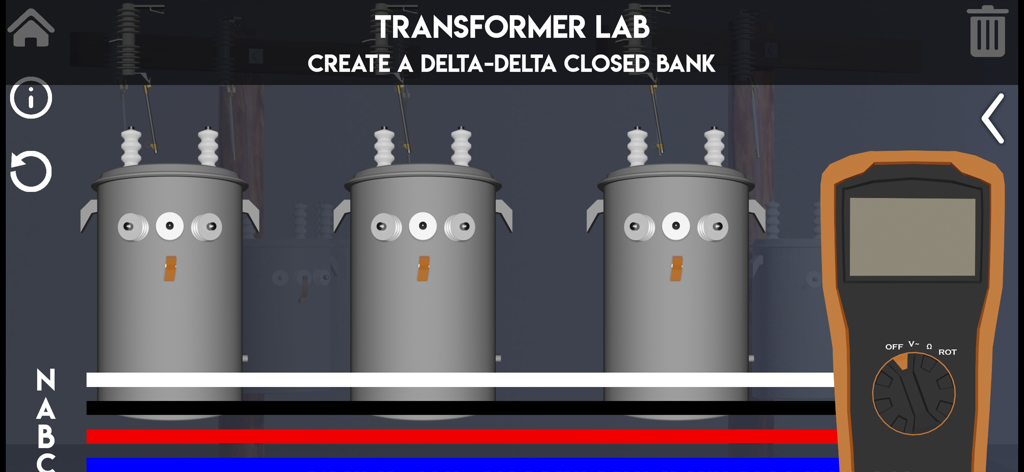

A digital simulation interface of a transformer lab showing three gray transformers and a multimeter for creating a delta delta closed bank.

A digital simulation interface of a transformer lab showing three gray transformers and a multimeter for creating a delta delta closed bank.

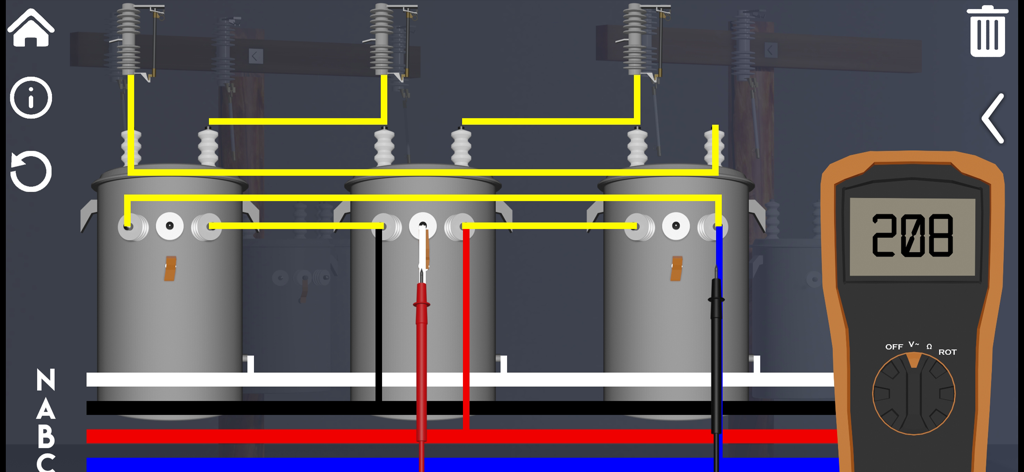

A digital simulation of three-phase transformer wiring with a voltmeter reading 208

A digital simulation of three-phase transformer wiring with a voltmeter reading 208

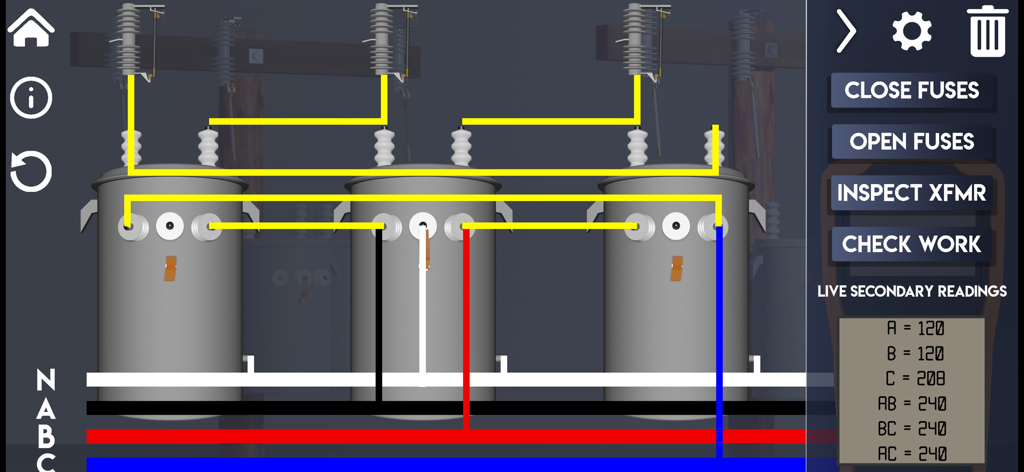

Simulation of three-phase transformer wiring with live secondary voltage readings in the XFMR LAB app.

Simulation of three-phase transformer wiring with live secondary voltage readings in the XFMR LAB app.

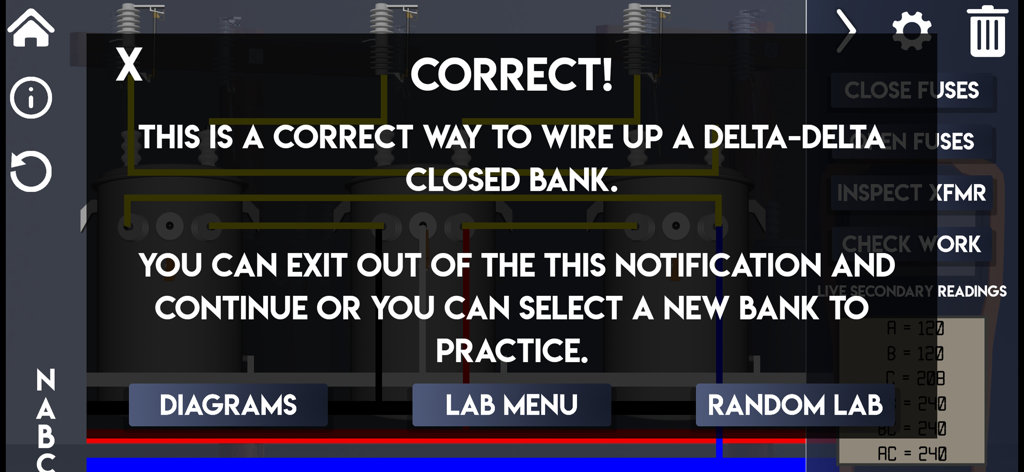

Success message for correctly wiring a Delta-Delta closed bank in the XFMR LAB app

Success message for correctly wiring a Delta-Delta closed bank in the XFMR LAB app

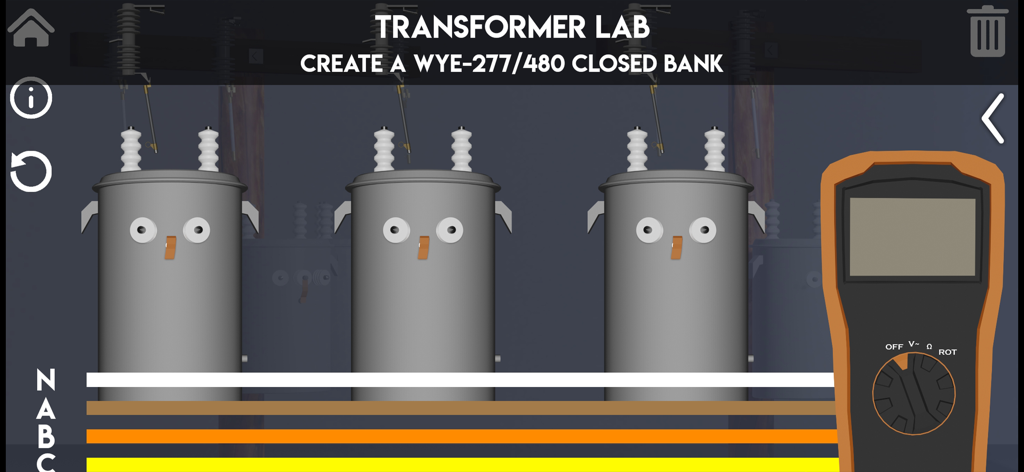

A 3D simulation showing a three-phase transformer bank wiring lab with a digital multimeter tool.

A 3D simulation showing a three-phase transformer bank wiring lab with a digital multimeter tool.

A simulation of three phase transformer wiring with live voltage readings in the XFMR LAB app

A simulation of three phase transformer wiring with live voltage readings in the XFMR LAB app

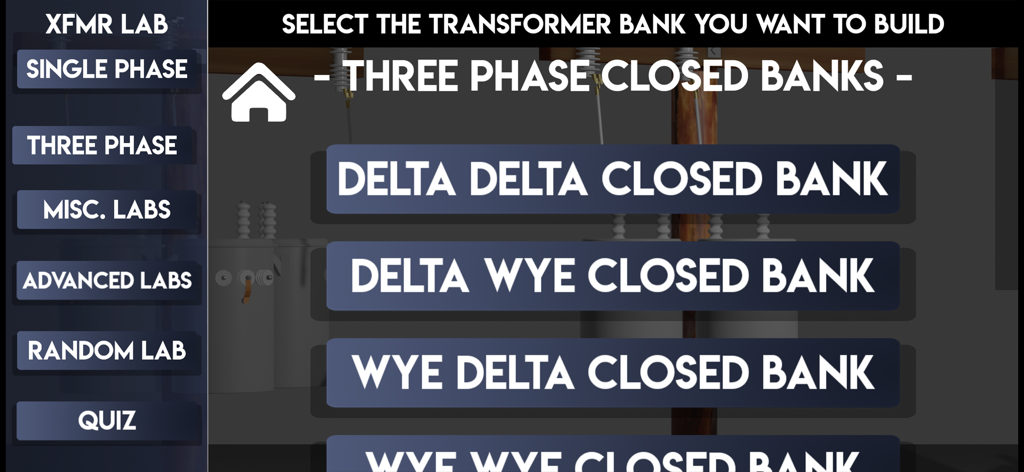

Main selection menu for three phase closed transformer banks in the XFMR LAB app

Main selection menu for three phase closed transformer banks in the XFMR LAB app

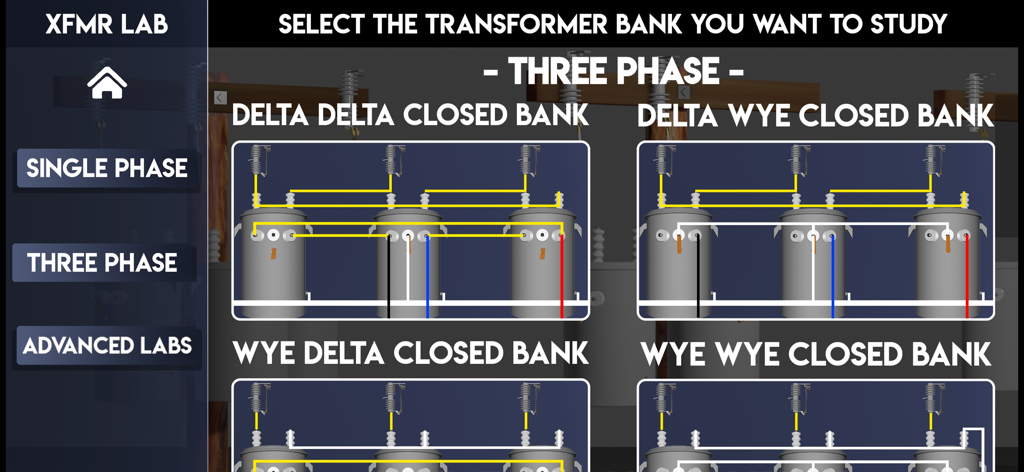

Menu for choosing three phase transformer bank wiring simulations

Menu for choosing three phase transformer bank wiring simulations

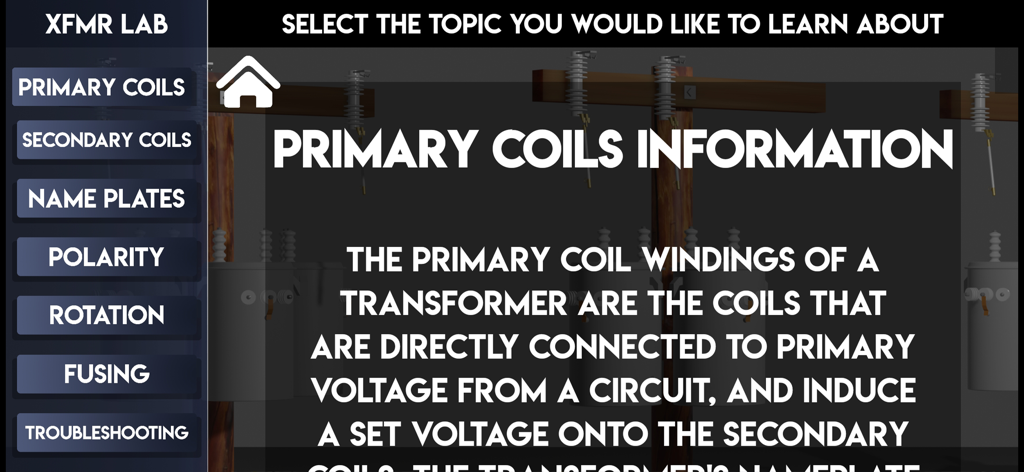

Primary coils information screen in the Linemans Reference app

Primary coils information screen in the Linemans Reference app

Master the Bank Before You Climb

The tools that make this app stand out, trusted by 26K+ users.

Fail Safe, Learn Fast

Practice complex single and three-phase connections without the risk of blowing real fuses or causing dangerous on-site errors.

🛠️

Virtual Field Tools

Use integrated volt, ohm, and rotation meters to verify your wiring and rotation just like you would in the bucket truck.

🎓

Ace Your Certifications

Prepare for lab exams with randomized quiz modes covering everything from Delta-Wye setups to advanced 480V configurations.

About the app

Everything you need to know about Lineman's Reference - XFMR LAB.

Description

This app is a fully functional transformer lab simulator that was designed and developed by a journeyman lineman, for lineman and apprentices. You can use this app to study and learn your transformer connections. When the fuses are closed in you can test your connections with a volt meter, ohm meter, and a rotation meter. Abnormal voltages and cutout fuses exploding can occur when improper connections are made. In the labs you can also inspect the transformers' nameplates and secondary coils. Quick reference diagrams, basic transformer informational reading material and more are available in this application. The Quiz mode lets you test your knowledge. The Company Customized Experience is a way for your Power Company to work with us where we will modify the app to match their spec. Tell them to reach out to us if they are interested! Current Labs in this app: -Single Phase- Single Bushing Topside Dual Bushing Topside -Three Phase- Delta Delta Closed Delta Wye Closed Wye Delta Closed Wye Wye Closed Delta Delta Open Wye Delta Open -Misc- Paralleling 4th Cutout Troubleshooting Tutorial -Advanced- Straight 480 240/480 277/480 Corner Grounded 240 or 480 Wye Wye 5 Wire (120/240 & 120/208) -Quiz- Test your transformer wiring knowledge by completing a predetermined assortment of labs at random. Blowing fuses and attempting to Check Work subtract from your overall score out of 100. -Advanced Quiz- Test your overall transformer knowledge by completing a series of random quizzes where you receive basic job-site information and have to choose the correct transformer nameplate and secondary coil configuration. You will then have the option to wire up the corresponding bank.
