PID Calculator

Name: PID Calculator
Availability: InStock
Rating: 1 (1 reviews)

The field-ready tool for engineers and technicians to calculate PID values instantly. Capture oscillation cycles with the hands-free volume button timer and get the perfect starting point for optimizing your control loops.

Key Figures

Downloads

400

User Rating

1.0/5

Total Ratings

Publisher

Matthew Bradshaw

Optimize Your PID Loops with Precision

Stop the guesswork and manual arithmetic. Use the classic Ziegler-Nichols method to generate reliable P, PI, and PID starting values in seconds.

Hands-Free Cycle Timing

Use physical volume buttons as a stopwatch to mark oscillation cycles while keeping your eyes fixed on the gauges or machinery.

Instant Z-N Calculations

Automatically convert Ultimate Gain and oscillation periods into actionable control values using the industry-standard Ziegler-Nichols formula.

The following screenshots and description are sourced directly from the app's official store listing and are the property of the app developer.

App Store

Screenshots

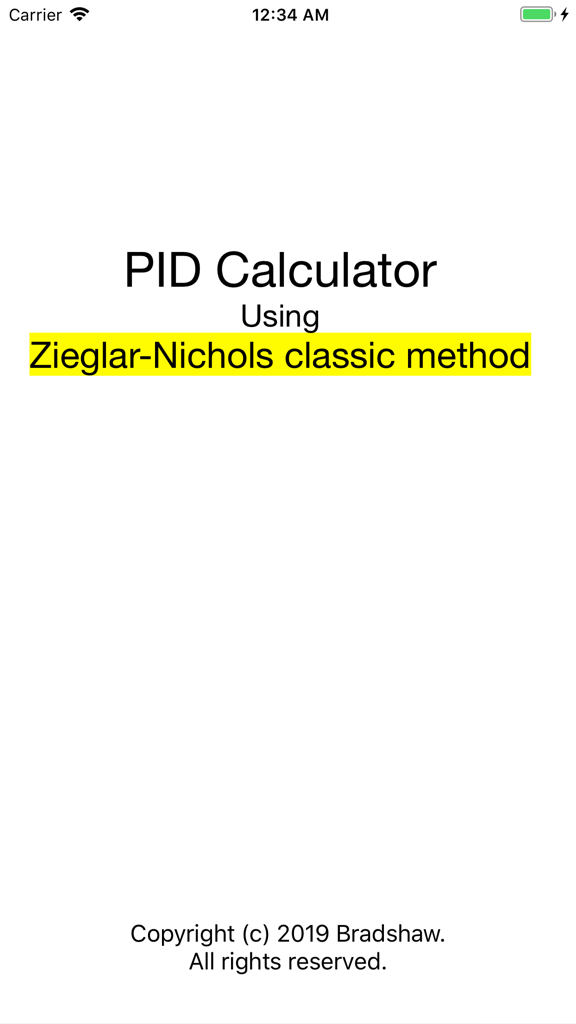

PID Calculator - PID Calculator app screen featuring the Ziegler Nichols method — PID Calculator app screen featuring the Ziegler Nichols method

PID Calculator - PID Calculator app interface showing Ziegler-Nichols method with ultimate gain and timer controls — PID Calculator app interface showing Ziegler-Nichols method with ultimate gain and timer controls

PID Calculator - User interface of the PID Calculator app showing the Ziegler-Nichols method with inputs for ultimate gain, a timer, and calculated PID values. — User interface of the PID Calculator app showing the Ziegler-Nichols method with inputs for ultimate gain, a timer, and calculated PID values.

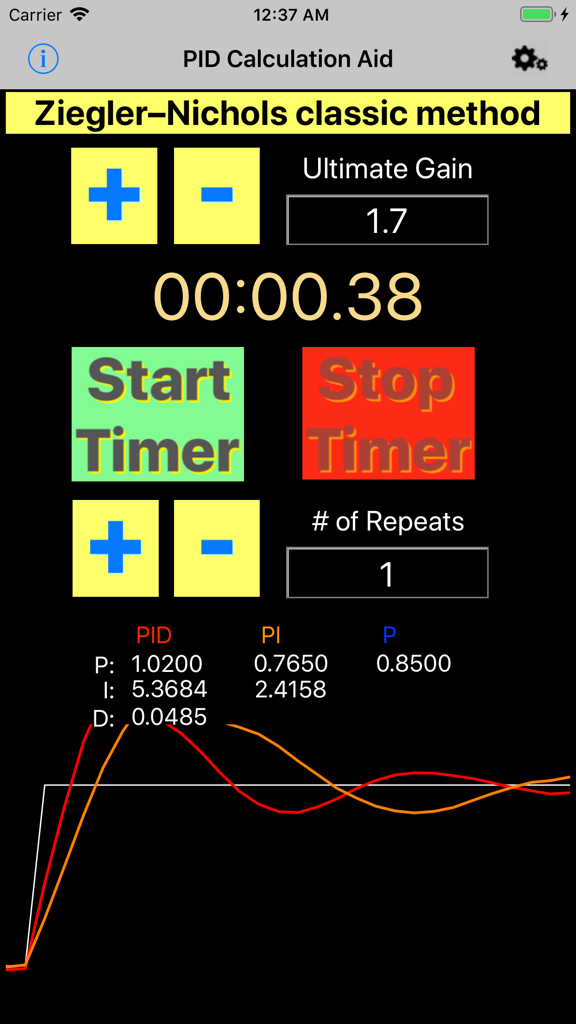

PID Calculator - PID Calculator app interface displaying Ziegler-Nichols tuning results and oscillation timer — PID Calculator app interface displaying Ziegler-Nichols tuning results and oscillation timer

PID Calculator - PID Calculator app interface for Ziegler-Nichols tuning with results and oscillation graph — PID Calculator app interface for Ziegler-Nichols tuning with results and oscillation graph

PID Calculator - Interface of the PID Calculator app using the Ziegler-Nichols method for control system tuning — Interface of the PID Calculator app using the Ziegler-Nichols method for control system tuning

Description

This program is based on Ziegler-Nichols classic method for approximating PID control values. Operation: 1) Clicking the Ultimate Gain "+" or "-" will increase or decrease the Ultimate Gain value by 0.1 or you may tap the value and enter a value manually.   2) Clicking the # of Repeats "+" or "-" will increase or decrease the # of Repeats value by 1 or you may tap the value and enter a value manually.   3) The Start Timer and Stop Timer controls are used to find the oscillation period.  This can be done using the buttons on the screen or by clicking the volume button(s). Click the time display to manually enter the time. 4) Clicking on the Time will offer the user a new window to adjust manually the time used in the calculation. 5) The resulting PID values should be used as a good starting point as most systems still require a small amount of manual tuning or a different method of calculation. Notes: Use this software by first setting the intended target's control Integral and Derivative values to 0 on the process to be tuned. Next, starting from 0, raise the Proportional value in small increments until the system oscillates at a steady rate around the set-point. Record this value as the Ultimate Gain and enter it into this software's Ultimate Gain text-box. Next enter the amount of repeats to be used in the calculation into the # of Repeats text-box. Wait to start the timer until the next oscillation cycle begins and stop the timer when the systems number of cycles matches the specified repeat amount. choose the P , PI, or PID column and test the result by changing the intended targets proportional to the P, I, and D values chosen . Next, slowly increase the Integral value from 0 until equal to the I value chosen or a desired result is achieved. Slowly increase the derivative from 0 until equal to the D value chosen or a desired result is achieved. More Information on PID Tuning may be found online @ https://en.wikipedia.org/wiki/PID_controller
