AGA-3 Orifice: Precision Flow Calculations for the Oil & Gas Industry

Instantly calculate flow-rate, size, and pressure drop with confidence. Compliant with AGA Report No. 3 and API 14.3 standards, designed for field engineers and measurement specialists.

Download on App Store

Publisher

Bjarne Berge

Category

Productivity

Downloads

800

User Rating

1.0/5

Total Ratings

0

Locales

1

Precision in Every Pixel

Discover the interface used by 800 users.

AGA-3 Orifice app splash screen with logo and orifice plate schematic

AGA-3 Orifice app splash screen with logo and orifice plate schematic

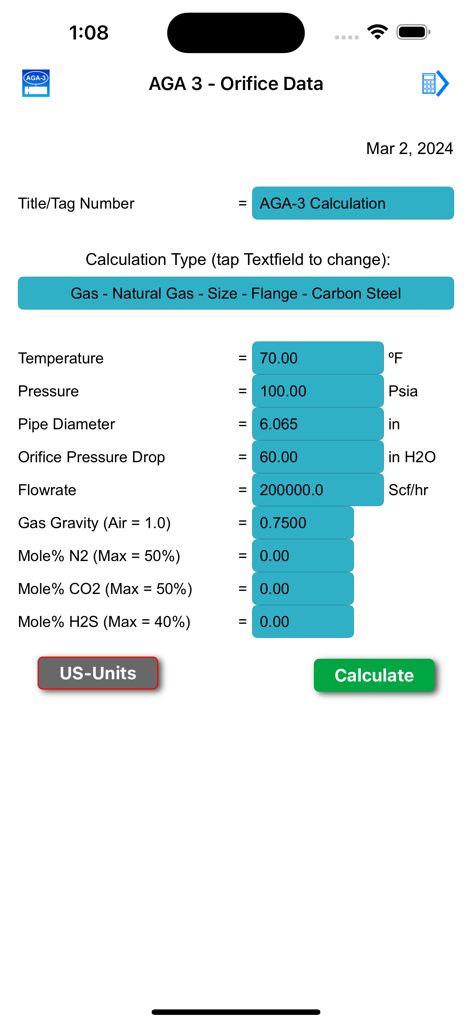

Interface of the AGA-3 Orifice app displaying input fields for natural gas flow calculation including pressure and temperature.

Interface of the AGA-3 Orifice app displaying input fields for natural gas flow calculation including pressure and temperature.

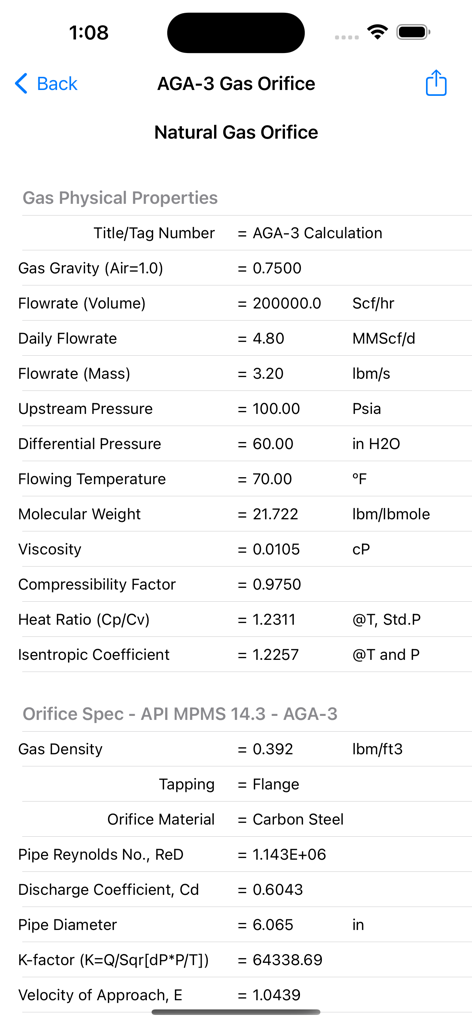

Natural Gas Orifice calculation results for AGA-3 and API 14.3 standards

Natural Gas Orifice calculation results for AGA-3 and API 14.3 standards

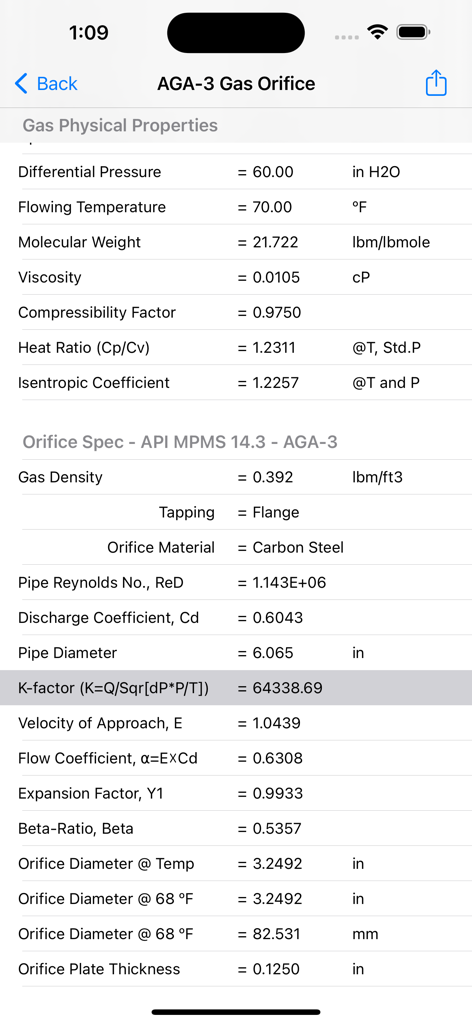

Screenshot of the AGA-3 Gas Orifice app displaying calculated gas physical properties and orifice specifications

Screenshot of the AGA-3 Gas Orifice app displaying calculated gas physical properties and orifice specifications

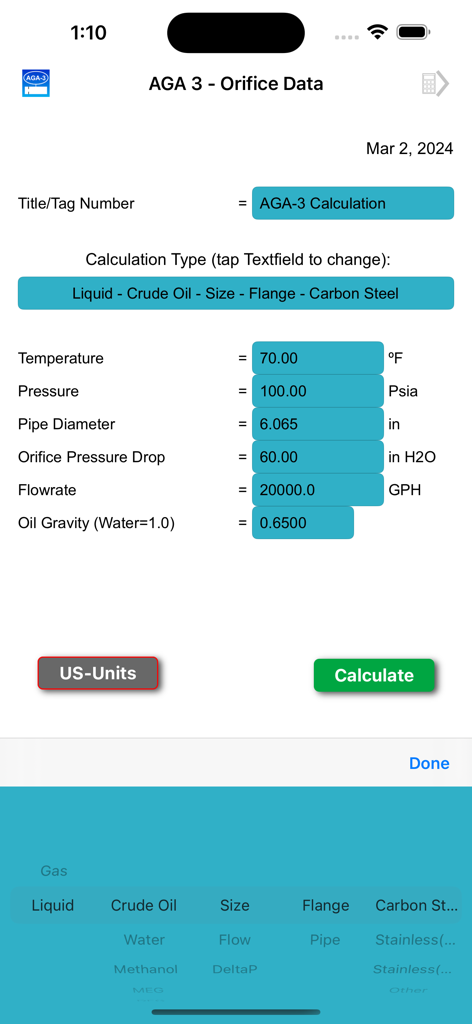

AGA-3 Orifice app interface showing crude oil flow calculation parameters and unit selection

AGA-3 Orifice app interface showing crude oil flow calculation parameters and unit selection

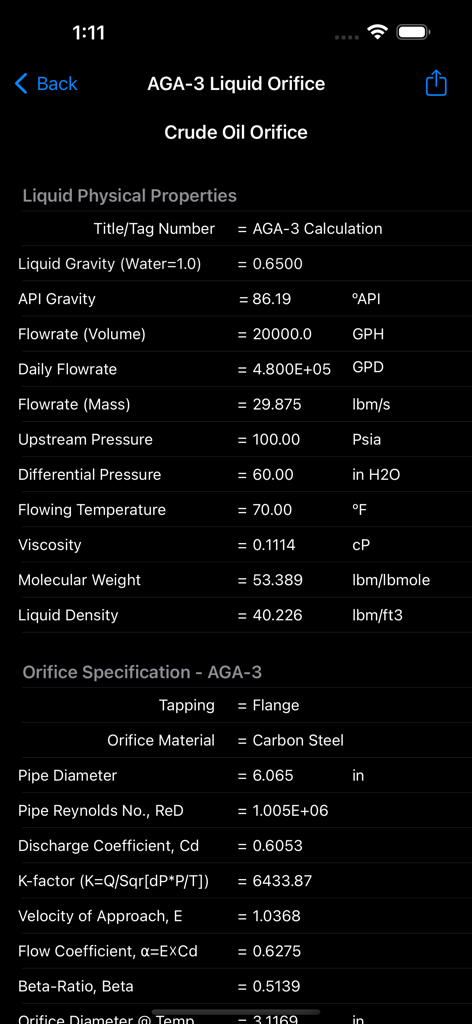

Interface of the AGA-3 Orifice app showing crude oil physical properties and technical specifications for engineering calculations

Interface of the AGA-3 Orifice app showing crude oil physical properties and technical specifications for engineering calculations

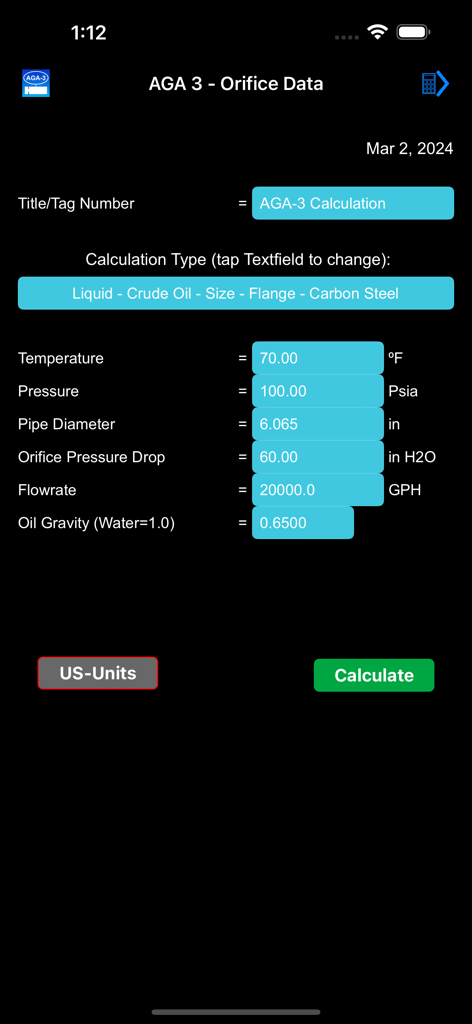

AGA-3 Orifice app interface showing crude oil flow rate calculation parameters in US units

AGA-3 Orifice app interface showing crude oil flow rate calculation parameters in US units

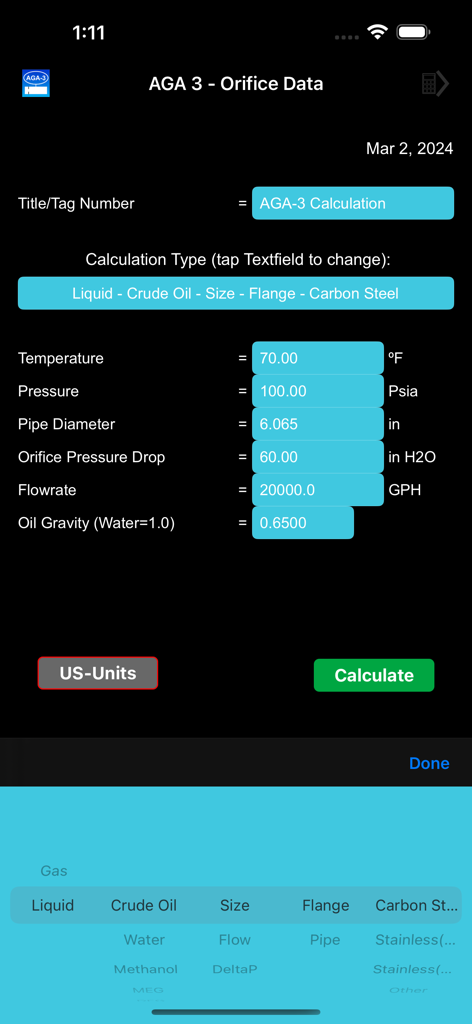

AGA-3 Orifice app screen showing calculation parameters for crude oil flow measurement

AGA-3 Orifice app screen showing calculation parameters for crude oil flow measurement

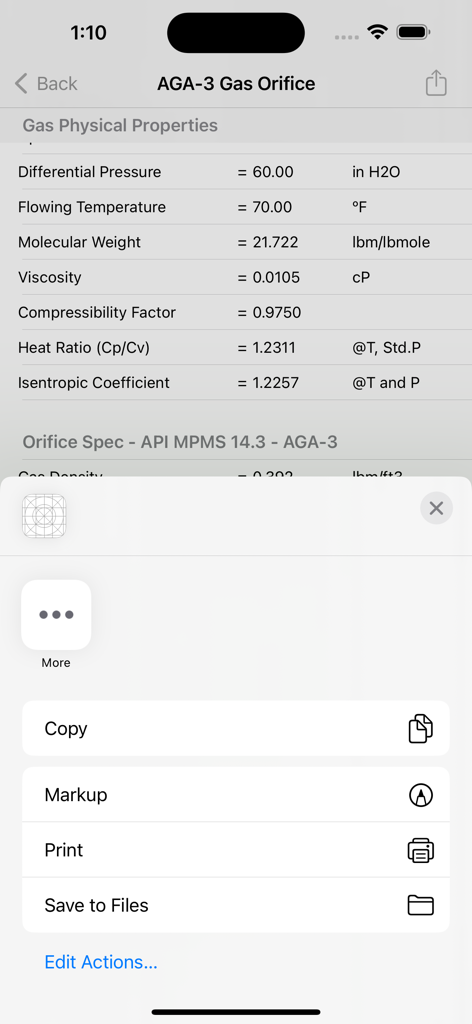

AGA-3 Orifice app displaying gas physical properties calculation results.

AGA-3 Orifice app displaying gas physical properties calculation results.

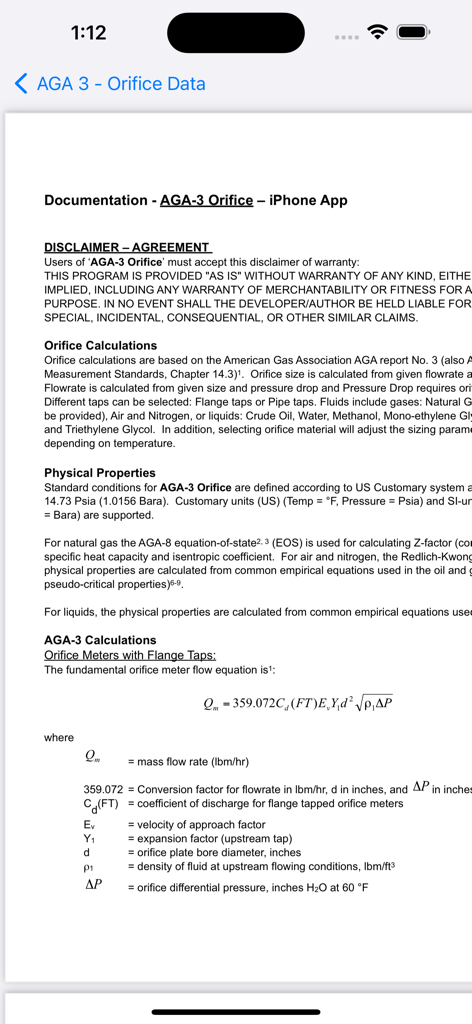

Technical documentation and orifice meter flow equation in the AGA-3 Orifice app

Technical documentation and orifice meter flow equation in the AGA-3 Orifice app

Precision Flow Engineering in Your Pocket

The tools that make this app stand out, trusted by 800 users.

✅

Industry-Standard Accuracy

Perform calculations based strictly on AGA Report No. 3 and API 14.3 standards for mission-critical measurement accuracy.

⛽

Complete Fluid Support

Switch between Natural Gas, Crude Oil, or specialized liquids like Methanol and Glycol with support for both US and SI units.

📏

Advanced Material Analysis

Automatically adjust sizing parameters based on orifice material and temperature to maintain precision in harsh field conditions.

About the app

Everything you need to know about AGA-3 Orifice.

Description

AGA-3 Orifice calculates size, flow-rate or pressure drop for gas and liquid flow orifice meters based on the American Gas Association AGA Report No. 3 (AGA-3) (also API Manual of Petroleum Measurement Standards, Chapter 14.3). Orifice Size is calculated from given flowrate and pressure drop, Flowrate is calculated from given size and pressure drop and Pressure Drop requires orifice size and flowrate. Different taps can be selected: Flange Taps and Pipe Taps. Fluids include gases: Natural Gas (Specific Gravity must be provided), Air and Nitrogen, or liquids: Crude Oil, Water, Methanol, Mono-ethylene Glycol, Diethylene Glycol and Triethylene Glycol. In addition, selecting orifice material will adjust the sizing parameter of the orifice depending on temperature. Customary or SI-units.

Latest Version

6.0

Size

0.9 MB

First Released

Feb 19, 2018

Deploy Industry-Standard Accuracy to the Field

Join the engineers and technicians relying on AGA-3 Orifice for precise, API 14.3 compliant calculations on the go. Get started today.
