Bimma EWD - Wiring Diagrams

Name: Bimma EWD - Wiring Diagrams
Availability: InStock
Rating: 2.67 (1 reviews)

Master every diagnostic with instant access to comprehensive schematics, ECU locations, and fuse box diagrams for BMW models from 1998 to 2025. Built for mechanics and DIY enthusiasts who demand accuracy without the dealership costs.

Utilities ›

Key Figures

Downloads

48K+

User Rating

2.7/5

Total Ratings

Publisher

Tarik Ahabchane

Master Every BMW Circuit

Get dealership-level electrical diagrams and component locations for over 25 years of BMW models, built for professional mechanics and dedicated DIY owners.

Complete 1998–2025 Database

From classic E46 chassis to the latest G-series and I-series EVs, access full schematics for every generation in a single, streamlined interface.

Engineered for the Workshop

Download diagrams for offline use and print high-res schematics. Perfect for deep-garage repairs or shop environments where signals are weak.

The following screenshots and description are sourced directly from the app's official store listing and are the property of the app developer.

App Store

Screenshots

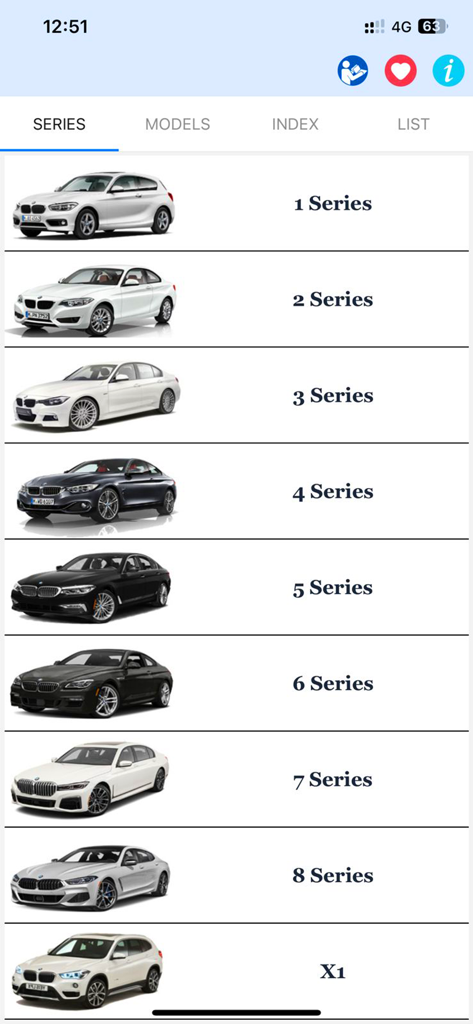

Bimma EWD - Wiring Diagrams - Bimma EWD app showing a list of BMW car series for wiring diagram selection — Bimma EWD app showing a list of BMW car series for wiring diagram selection

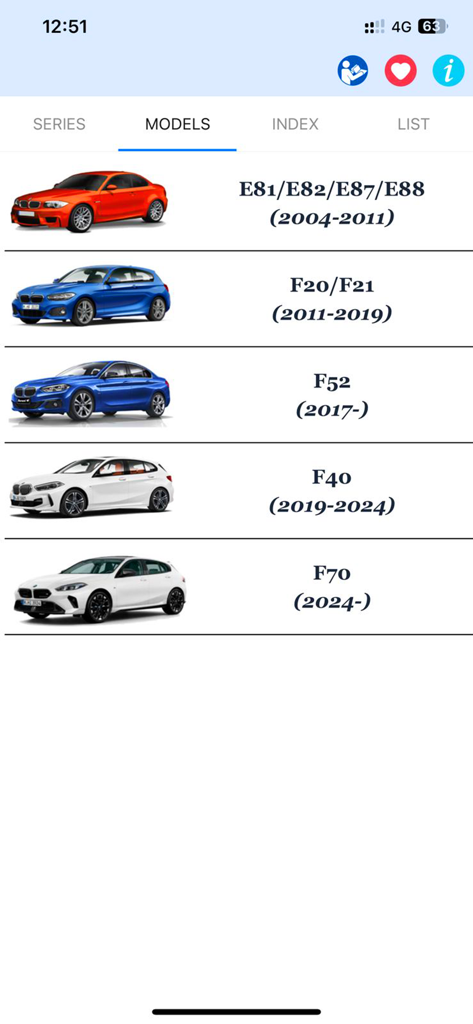

Bimma EWD - Wiring Diagrams - A list of BMW car models sorted by series and production years in the Bimma EWD app — A list of BMW car models sorted by series and production years in the Bimma EWD app

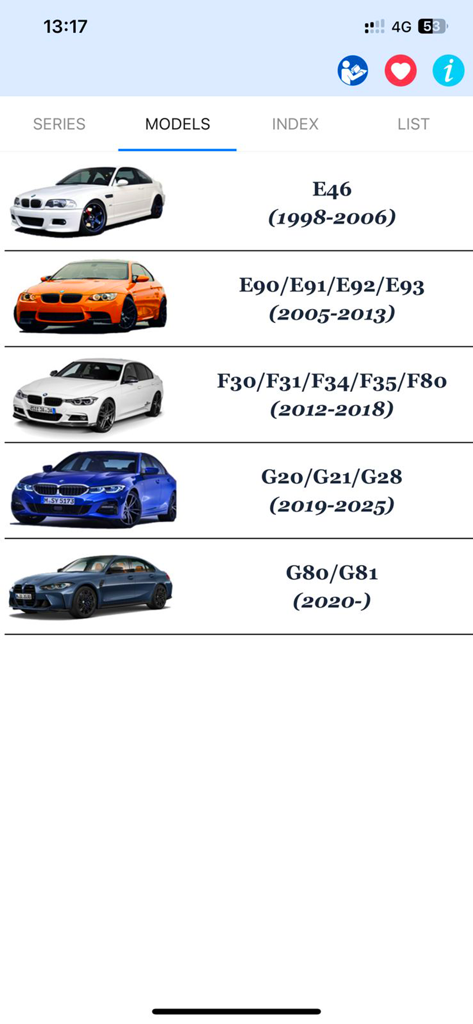

Bimma EWD - Wiring Diagrams - Interface showing a selection of BMW models and series codes for electrical wiring diagrams. — Interface showing a selection of BMW models and series codes for electrical wiring diagrams.

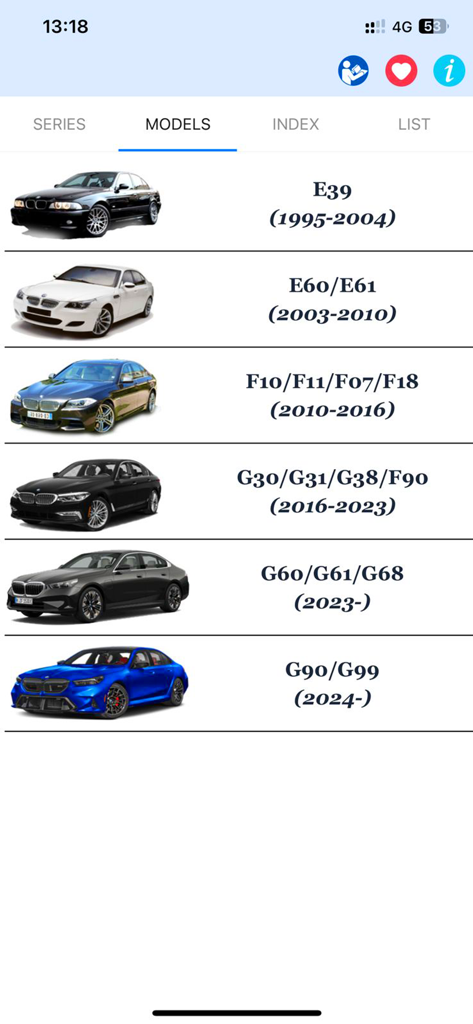

Bimma EWD - Wiring Diagrams - BMW car models list showing chassis codes and production years in the app — BMW car models list showing chassis codes and production years in the app

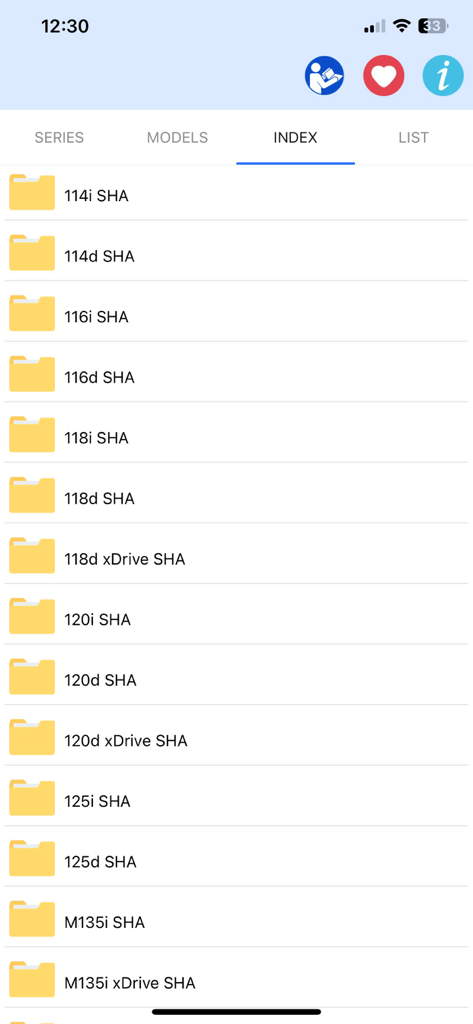

Bimma EWD - Wiring Diagrams - Bimma EWD app screen showing an index of BMW models with file folders — Bimma EWD app screen showing an index of BMW models with file folders

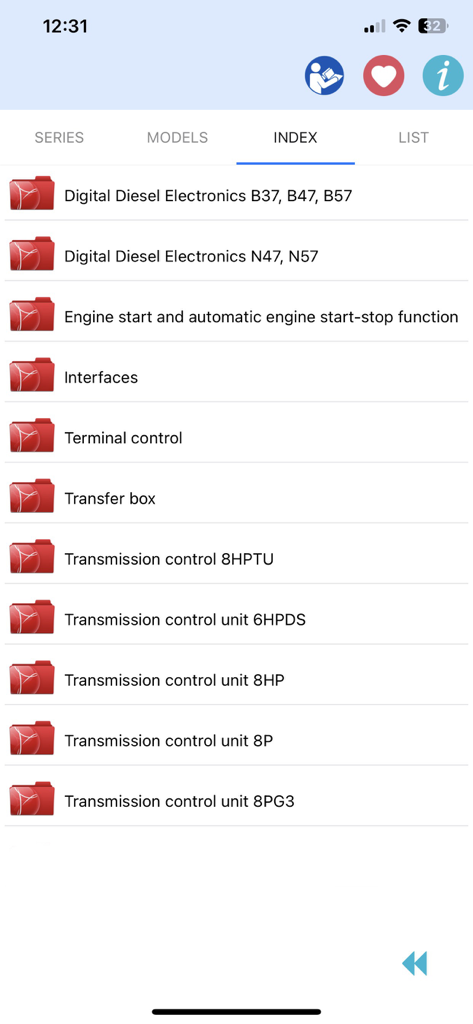

Bimma EWD - Wiring Diagrams - A list of BMW electrical wiring diagram categories including diesel electronics and transmission control within the Bimma EWD app — A list of BMW electrical wiring diagram categories including diesel electronics and transmission control within the Bimma EWD app

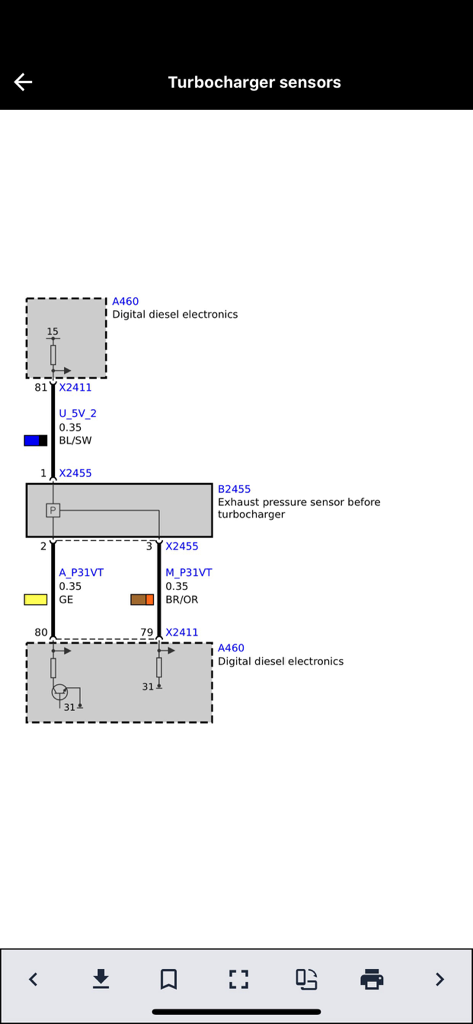

Bimma EWD - Wiring Diagrams - Technical electrical wiring diagram for BMW turbocharger sensors showing pinouts and wire paths — Technical electrical wiring diagram for BMW turbocharger sensors showing pinouts and wire paths

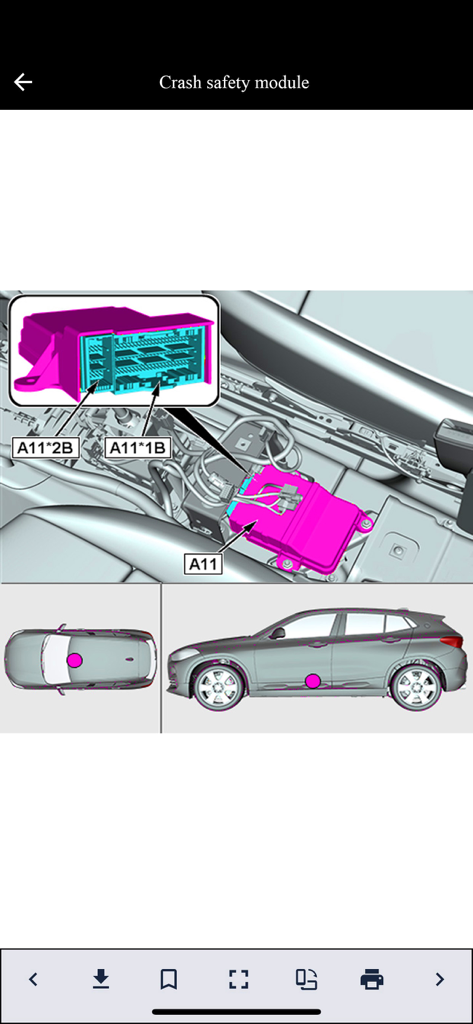

Bimma EWD - Wiring Diagrams - BMW crash safety module location and connector pinout diagram in Bimma EWD app — BMW crash safety module location and connector pinout diagram in Bimma EWD app

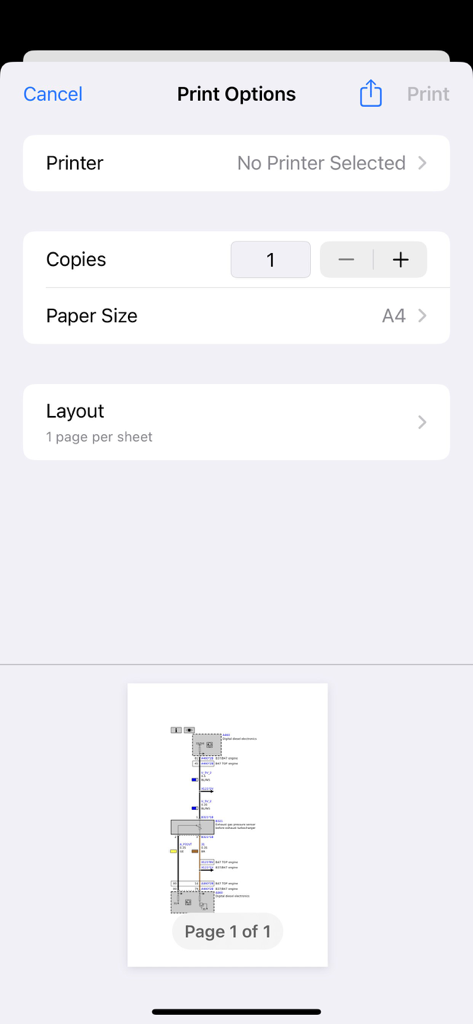

Bimma EWD - Wiring Diagrams - Print options menu in the Bimma EWD app showing settings for copies and paper size for a BMW wiring diagram schematic. — Print options menu in the Bimma EWD app showing settings for copies and paper size for a BMW wiring diagram schematic.

Description

This application contains all electrical wiring diagrams and location of electronic components (ECU, Fuse Box..) for BMW cars from 1998 to 2025. Regularly updated for trustful electrical wiring diagrams and can be used as a reference when you do repairing BMW cars. Currently includes the following models (all models from 1998-2025) : 1 series : E81, E82, E87, E88, F20, F21, F40, F52, F70 2 series : F22, F23, F45, F46, F87, G42, U06, G87 3 series : E46, E90, E91, E92, E93, F30, F31, F34, F35, F80, G20, G21, G28, G80, G81 4 series : F32, F33, F36, F82, F83,G22, G23, G26, G82, G83 5 series : E39, E60, E61, F10, F11, F07, F18, G30, G31, G38, F90, G60, G61, G68, G90, G99 6 series : E63, E64, F12, F13, F06, G32 7 series : E65, E66, E67, E68, F01, F02, F03, F04, G11, G12, G70, G73 8 series : F91, F92, F93, G14, G15, G16 X series : E84, E83, E53, E70, E71, F48, F39, F25, F97, F26, F98, F15, F85, F16, F86, G01, G02, G05, G06, G07, G08, G09, G45, G48, U10, U11, U12 Z series : E52, E85, E89, G29 I series : I01, I12, I15, I20 Application features: - Download function - Print function - Favorites - No ads
