CNC VMC Simulator

Name: CNC VMC Simulator
Availability: InStock
Rating: 3.14 (1 reviews)

Bridge the gap between theory and the workshop. Practice VMC programming, visualize 3D toolpaths, and gain the confidence to operate without the risk of a real-world crash.

Education ›Utilities ›

Key Figures

Downloads

46K+

User Rating

3.1/5

Total Ratings

Publisher

Ilya Obraztsov

Master CNC Programming with Confidence

Bridge the gap between textbook theory and the shop floor with a portable 3D simulator designed for the next generation of machinists.

3D Toolpath Visualization

Transform abstract ISO G-code into clear 3D trajectories. See exactly how your tool moves before you ever touch a real machine.

Prevent Costly Crashes

Test your programs in a risk-free environment. Use syntactic analysis to catch errors and debug code block-by-block without breaking expensive tools.

The following screenshots and description are sourced directly from the app's official store listing and are the property of the app developer.

App Store

Screenshots

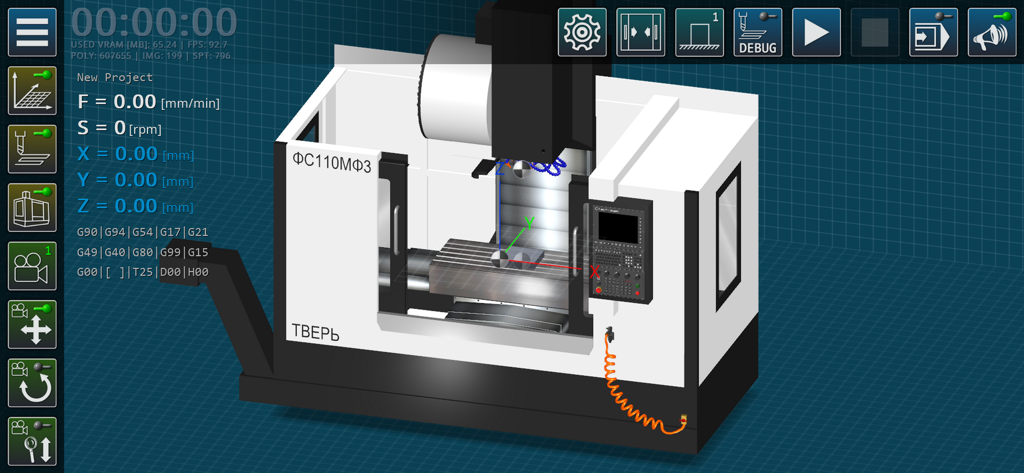

CNC VMC Simulator - 3D model of a vertical machining center in the CNC VMC Simulator app — 3D model of a vertical machining center in the CNC VMC Simulator app

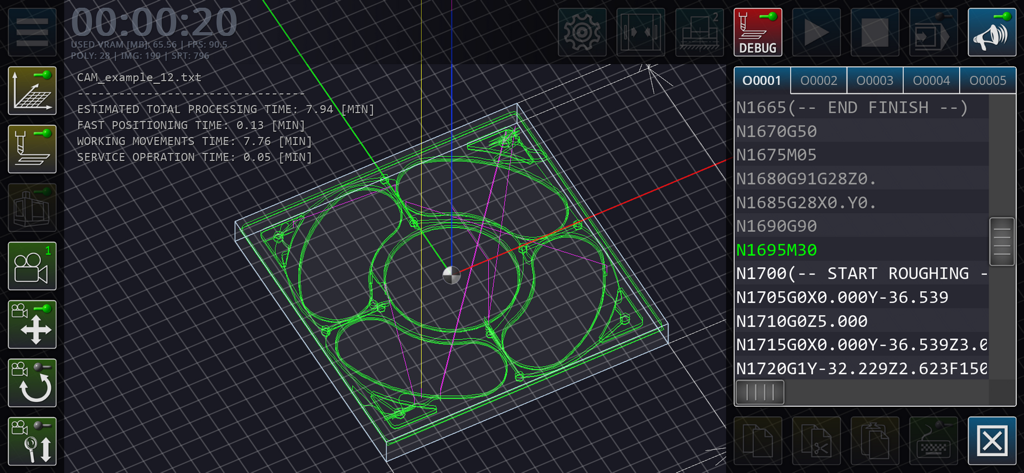

CNC VMC Simulator - Interface of the CNC VMC Simulator app showing a 3D toolpath visualization and G-code programming code — Interface of the CNC VMC Simulator app showing a 3D toolpath visualization and G-code programming code

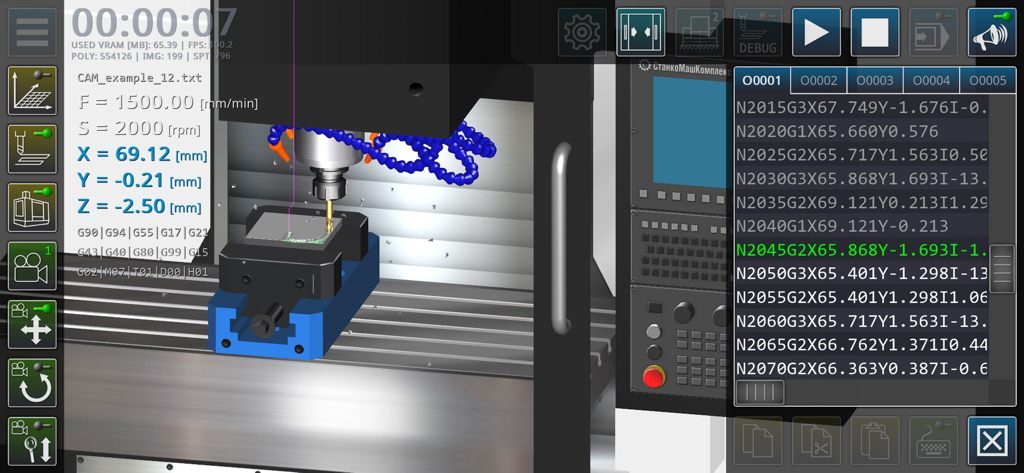

CNC VMC Simulator - CNC VMC Simulator app interface showing 3D milling simulation and G-code editor — CNC VMC Simulator app interface showing 3D milling simulation and G-code editor

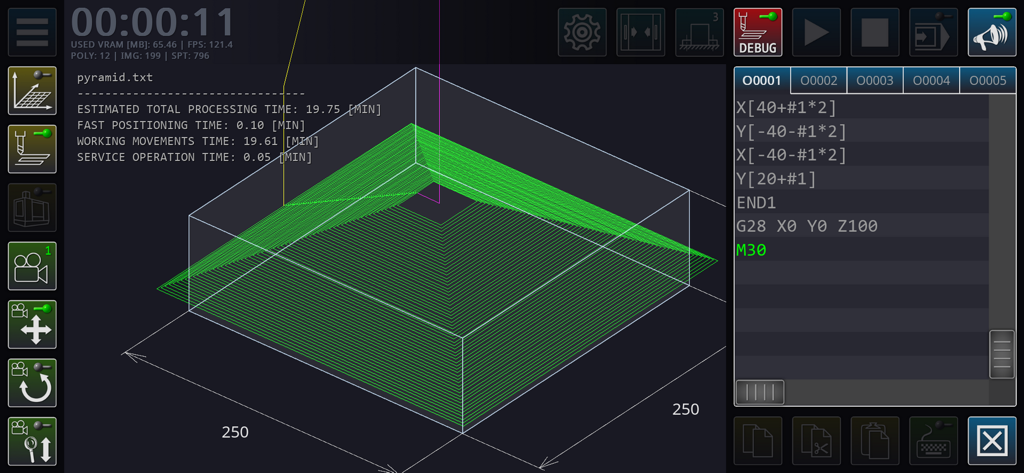

CNC VMC Simulator - 3D toolpath visualization and G-code editor interface in CNC VMC Simulator — 3D toolpath visualization and G-code editor interface in CNC VMC Simulator

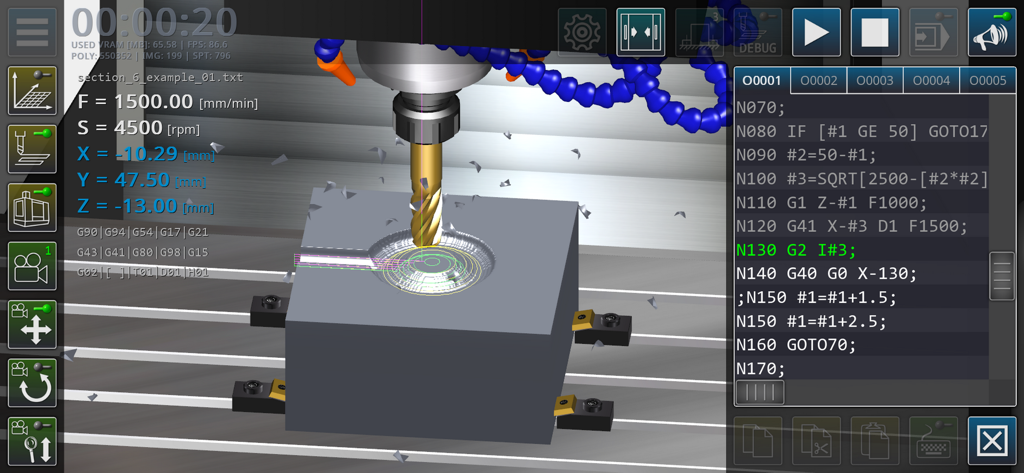

CNC VMC Simulator - CNC VMC Simulator interface showing 3D milling and G-code programming — CNC VMC Simulator interface showing 3D milling and G-code programming

Description

The CNC milling machine simulator is a multimedia application designed to provide a basic introduction to beginner mechanical engineering professionals with the principles of programming operations for milling parts using a standard (ISO) G-code. The main task of the application is syntactic analysis (parsing) of the code of control programs in order to build a graphical model of cutting tool trajectories in three-dimensional space. The main functions of the application: editing the code of the control programs of the milling machine, operations with files of control programs, setting the geometric parameters of the cutting tool, continuous/step-by-step execution of blocks of control programs, three-dimensional visualization of tool movements in the working space of the machine, simplified visualization of the machined surface of the part, calculation of processing modes, a quick reference guide to using G-code. The main limitations of the application are: low accuracy of cutting surface modeling, the impossibility of using polygonal geometry as a workpiece, a simplified model of machine tooling elements.
