DC Power Cable Size Calc: Precise Wire Gauging for Solar, RV, and Marine Projects

Stop guessing and start building safely. Get instant, accurate cable sizing for 12V, 24V, and 48V systems to eliminate voltage drop and optimize your electrical setup.

Download on App Store

Publisher

Tan Chia Ling

Category

Utilities

Downloads

2K+

User Rating

3.6/5

Total Ratings

0

Locales

1

Precision at a Glance

Discover the interface used by 2K+ users.

The calculation screen of the DC Power Cable Size Calc app showing wire gauge results based on voltage and amperage inputs

The calculation screen of the DC Power Cable Size Calc app showing wire gauge results based on voltage and amperage inputs

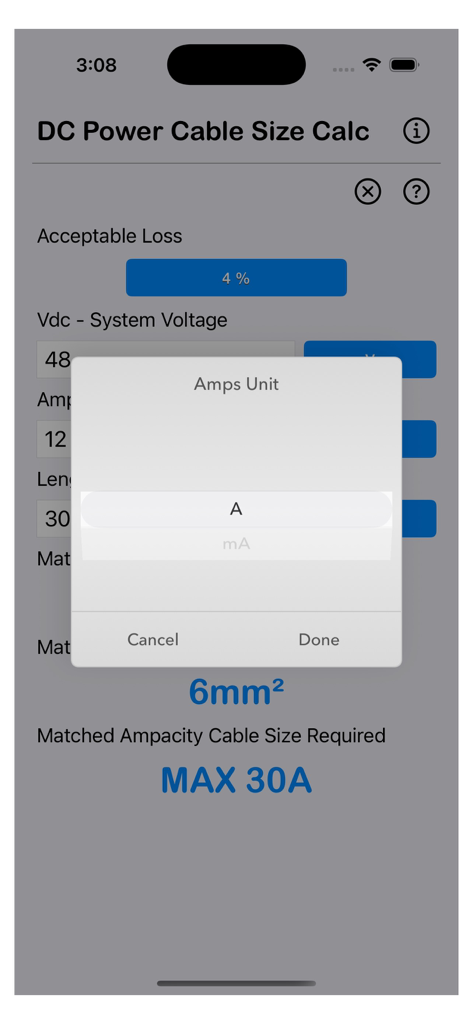

DC Power Cable Size Calc app interface showing a unit selection pop-up for Amps over system voltage and length calculation inputs.

DC Power Cable Size Calc app interface showing a unit selection pop-up for Amps over system voltage and length calculation inputs.

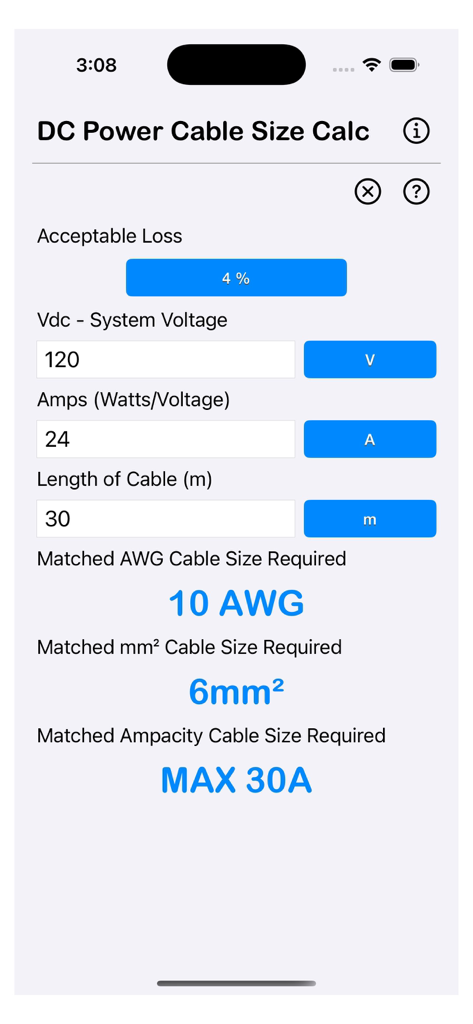

Interface of the DC Power Cable Size Calc app showing wire gauge and ampacity results

Interface of the DC Power Cable Size Calc app showing wire gauge and ampacity results

DC Power Cable Size Calc length unit selection menu

DC Power Cable Size Calc length unit selection menu

DC Power Cable Size Calc app interface showing wire gauge calculation results including 12 AWG and 4mm2

DC Power Cable Size Calc app interface showing wire gauge calculation results including 12 AWG and 4mm2

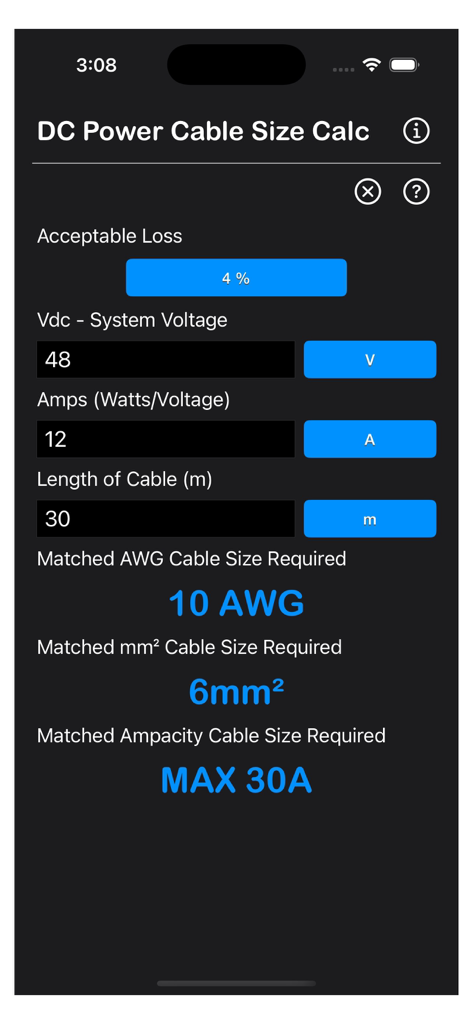

DC Power Cable Size Calc app interface showing wire gauge and ampacity results

DC Power Cable Size Calc app interface showing wire gauge and ampacity results

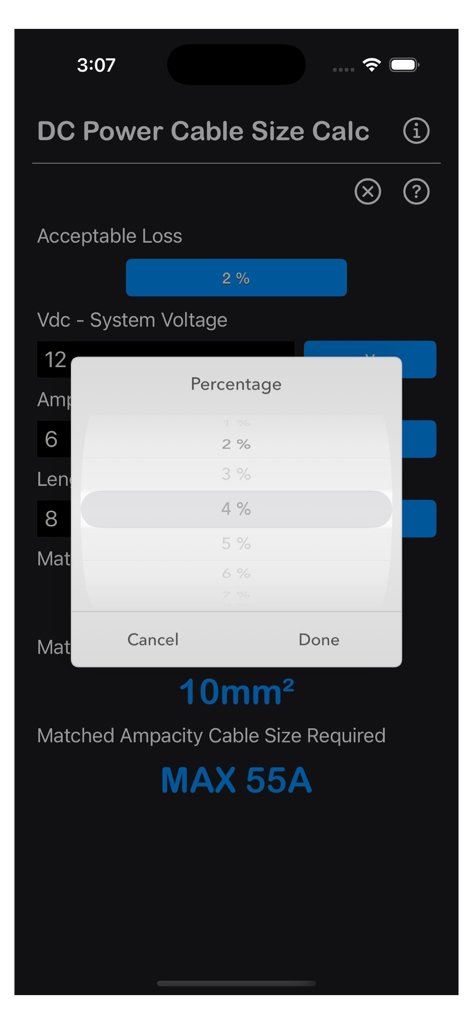

User interface of the DC Power Cable Size Calc app showing a percentage selection wheel for acceptable voltage drop

User interface of the DC Power Cable Size Calc app showing a percentage selection wheel for acceptable voltage drop

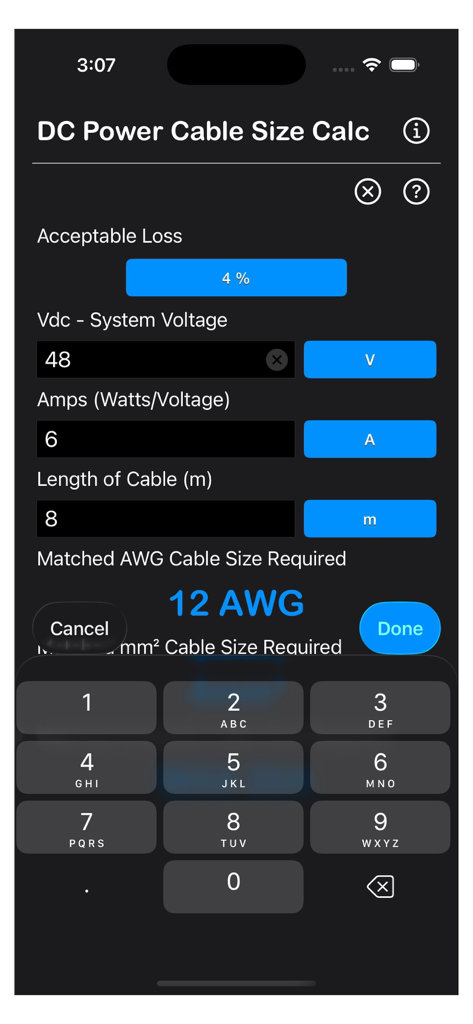

Interface of the DC Power Cable Size Calc app displaying input fields for voltage and current and the resulting cable size

Interface of the DC Power Cable Size Calc app displaying input fields for voltage and current and the resulting cable size

DC Power Cable Size Calc app interface showing a voltage unit picker modal with options like volts and microvolts over calculation fields

DC Power Cable Size Calc app interface showing a voltage unit picker modal with options like volts and microvolts over calculation fields

Mobile app interface for calculating DC wire gauge and cable size based on voltage and length

Mobile app interface for calculating DC wire gauge and cable size based on voltage and length

Professional-Grade DC Wiring Precision

The tools that make this app stand out, trusted by 2K+ users.

Instant VDI Calculations

Skip the manual math; get precise wire gauge results for 12V, 24V, or 48V systems in seconds while on the job.

🛡️

Safety-First Engineering

Prevent dangerous voltage drops and overheating with built-in safety guidelines and reference formulas for every project.

📋

Streamlined Documentation

Copy results instantly to share with clients, include in project notes, or order components directly from your supplier.

About the app

Everything you need to know about DC Power Cable Size Calc.

Description

DC Power Cable Size Calculator are electrical calculator to find approximate wire gauge/size based on the length of the wire, the voltage and the current (in amps). Features: - Instant calculation - Result are copy able to other app - Formula are include as reference - Support various unit for each input Cable sizes are important for low voltage battery cables, wind turbines, solar panels and load cables. Common reasons for low voltage (12v, 24v or 48v) system faults are voltage drops through incorrectly sized cables. It can be very dangerous If the cable is too small, as the cable will heat up and potentially cause a fire. On contrast an oversized cables might cause energy or money waste. Formula: VDI = (Amps x Distance)/(%Volt Drop x Voltage) VDI - Voltage Drop Index (a reference number based on resistance of wire) Distance - One way wiring distance in feet %Volt Drop = acceptable voltage drop Cable Size by cross-sectional area [Cooper] mm² = VDI x 1.1 The voltage drop value will vary depending on your application. The standard 2% are use to ensure delivering full potential to any needed electrical source. And 5% or more voltage drop is more common in automotive applications. Safety Guide: - Cable sizes should only be used as a guideline and all figures should be checked against the manufacturers data sheet. - Cables should be fused / current protected to their max rating or less. Thanks for your support and do visit nitrio.com for more apps for your iOS devices.
