Piping DataBase - Flanges

Name: Piping DataBase - Flanges
Availability: InStock
Rating: 1 (1 reviews)

Access ASME B16.5 and B16.47 specifications instantly. Designed for engineers and pipe fitters who need accurate flange dimensions and bolt data on-site without the heavy manuals.

Key Figures

Downloads

14K+

User Rating

1.0/5

Total Ratings

Publisher

Radin Alcira

Engineering Precision at Your Fingertips

Access critical ASME B16.5 and B16.47 flange data instantly. Designed for one-handed operation in the field or at the drafting table.

Comprehensive ASME Standards

Get instant dimensions and specs for Welding Neck, Blind, Slip-On, and Socket Welding flanges across all class ratings.

Critical Hardware Specs

Eliminate guesswork with precise data on bolt numbers, diameters, and lengths for both Raised Face (RF) and Ring Type Joints (RTJ).

The following screenshots and description are sourced directly from the app's official store listing and are the property of the app developer.

App Store

Screenshots

Piping DataBase - Flanges - Technical blueprint style illustration of piping systems with valves and flanges for the Piping DataBase app cover — Technical blueprint style illustration of piping systems with valves and flanges for the Piping DataBase app cover

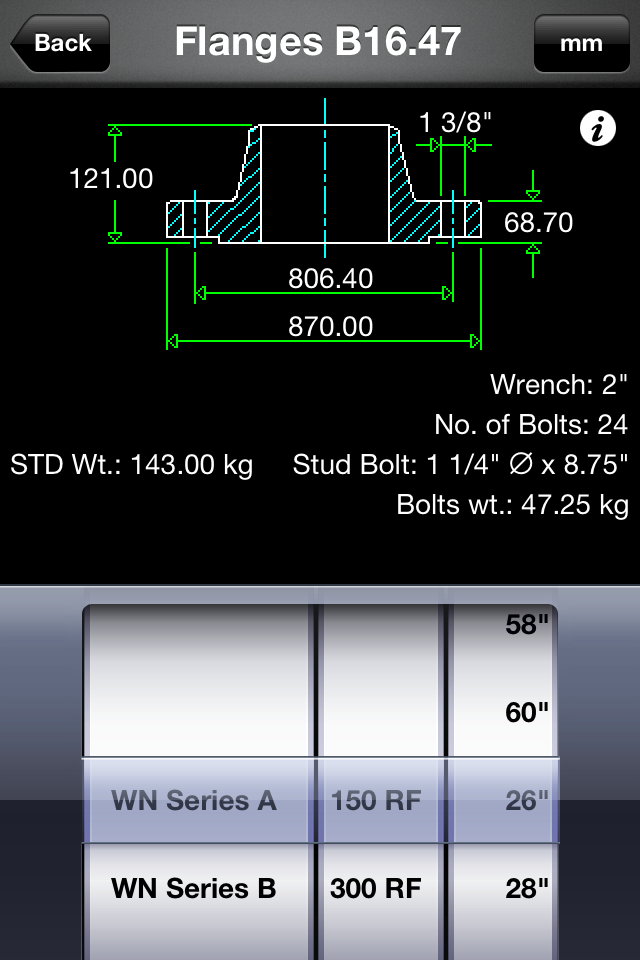

Piping DataBase - Flanges - Technical diagram and dimensions for B16.47 flanges including bolt specifications and weight — Technical diagram and dimensions for B16.47 flanges including bolt specifications and weight

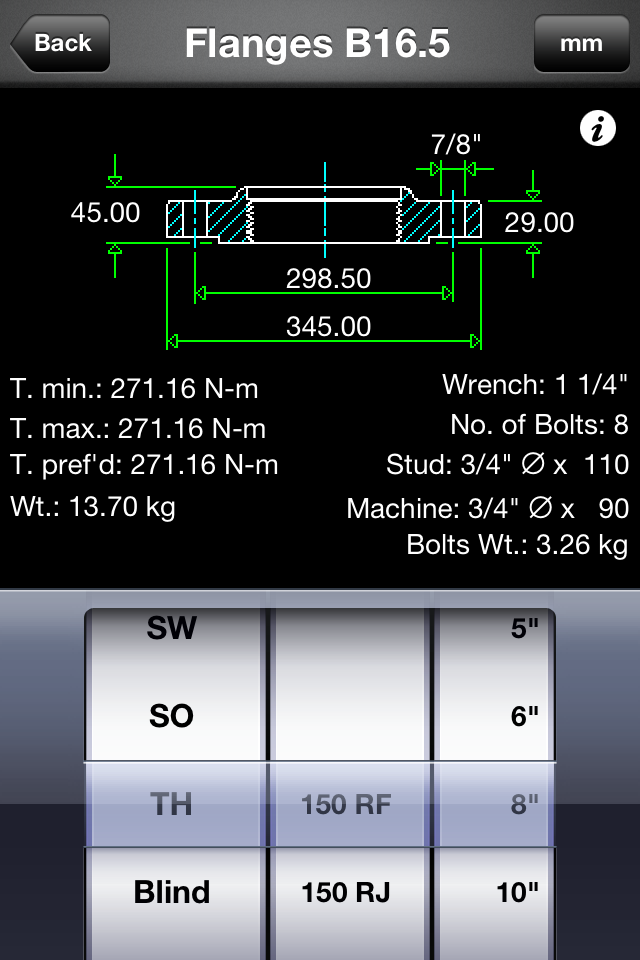

Piping DataBase - Flanges - Technical specifications and diagram for industrial pipe flanges — Technical specifications and diagram for industrial pipe flanges

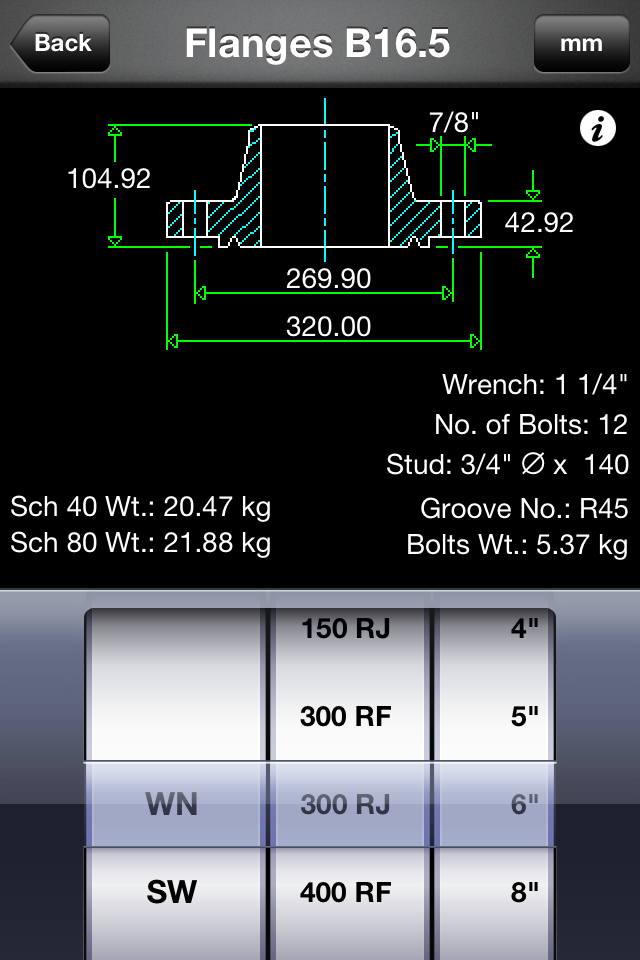

Piping DataBase - Flanges - Technical diagram and specifications for B16.5 pipe flanges in the Piping DataBase mobile app. — Technical diagram and specifications for B16.5 pipe flanges in the Piping DataBase mobile app.

Description
